Gateway for Smart Home Energy Monitoring Meter
- Aug 10, 2023
- 1 min read
Updated: Aug 17, 2023
Smart Meter Architecture

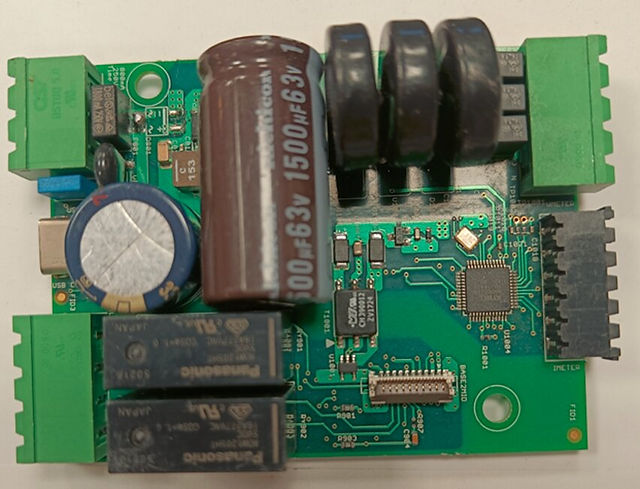

Smart Energy meter hardware
Scope
To design a gateway for smart home energy monitoring meters for industries and residential properties to read data from energy meters and send it to the cloud.
Features
Monitor load consumption, maximum demand, power factor, and other energy meter data
Auto supply cutoff if consumption exceeds in case of prepaid meters
Support reverse power calculations (back to the grid)
Users can monitor data over mobile and cutoff supply in a single click
Provides mobile and cloud dashboard to track energy consumption on hourly/day/monthly basis
Project Implementation
An advanced energy metering solution for cutting-edge 3-phase energy meter
Used high-performance metering IC ATM90E32AS-AU-Y
Seamless data acquisition and transmission using Artik053 SoC
Using SLIP (Serial Line Internet Protocol), facilitated through a UART connection over the versatile USB Type-C interface.
Precision in current measurement using configurable external Current Transformers (CT)
Specifications
Accuracy class of 0.5
Input voltage range of 100 – 277 VAC with a tolerance of +/-10%
Certified for IS 16444 part 1 and IS 13779 standards
